MSA 10163033, Workman CSE Kit, 50' Workman Rescuer, 65' Workman Winch, Stainless Steel Cable

MSA 10163033 Confined Space Entry Kit with Workman® Tripod, 50' Workman® Rescuer, 65' Workman® Winch, Stainless Steel Cable, Includes (2) Pulleys and (2) Carabiners

The MSA Workman® Confined Space Entry Kits

A Confined Space Entry Kit makes it easy to order a confined space system.

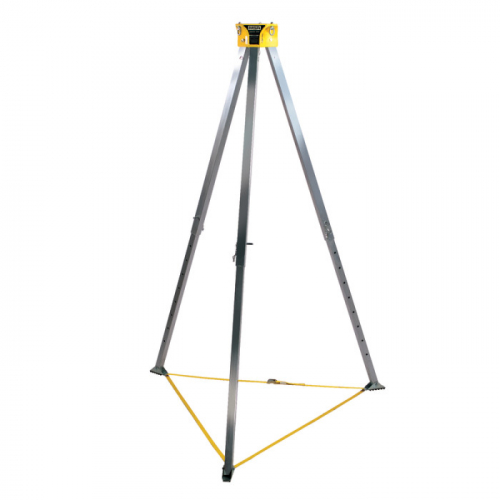

The Workman® Tripod: Easy to Use. Durable. Versatile.

The Workman Tripod is very easy to use. Simple setup makes the process quick and promotes correct use. MSA tripods make confined space entry with vertical descent easy. The Workman® Tripod features internal leg-locking mechanism, maximum height indicator on tripod legs, cut-resistant leg pin retention chains, recessed product labels, reduced weight and integral carry strap. The Workman® Tripod can be set up and dismantled without use of tools.

• Automatic hinge lock legs with incremental adjustment.
• Skid-resistant feet.

Ease-of-use features:

• Legs automatically lock in open position for added safety.
• Maximum height indicator provides quick and easy identification of maximum leg extension length.
• No need for separate pulley/bracket assembly, making winch or hoist attachment easier and faster.
• Accessories attach to any leg for faster setup.
• Aluminium leg and head design reduces weight, improving portability.
• Telescoping legs (up to 8 ft. high) do not tangle when unit is collapsed for easier transportation and storage.

Durable

A tripod needs to hold up well under use, and the Workman® Tripod does. Built for durability, the unit features:

• Skid-resistant feet with built-in leg base support strap that improves stability and strengthens entire system.
• Cut-resistant pin retention chains that enable extended service life.
• Internal leg-locking mechanism prevents accidental disengagement during use and reduces possibility of damage to mechanism during use or while in storage.

Versatile

If ease-of-use and durability aren't enough, the Workman® Tripod offers great versatility:

• Leg base support strap also serves as convenient carry strap.
• Tripod legs feature 4" incremental adjustments with easy-to-insert ball detent pins.
• Unit is backwards-compatible with Lynx™ Hoist and Lynx™ Rescuer; no need to purchase new equipment or undergo costly upgrades.
• Unit is backwards-compatible with Workman Winch, Lynx™ Hoist and Lynx™ Rescuer; no need to purchase new equipment or undergo costly upgrades.

The Workman® Winch

The Workman® Winch is rugged, versatile and economical for lifting, lowering and positioning of personnel and materials within confined space applications. Designed for maximum 400-lb workload for personnel and 620-lb for materials (20:1 design factor), the Workman® Winch is built with tough thermoplastic housing to ensure high performance within the harshest environments. Winch offers integral, ergonomic carry grip and unique, foldable handle for simple storage. Patent-pending bracket design allows for easy, rapid assembly.

• Maximum work load of 400 lbs for personnel, 620 lbs for materials.
• Patent-pending bracket attachment for easy installation.
• Ergonomic carry grip.
• Foldable crank handle.
• Includes integral RFID technology.
• Includes self-locking swivel 36C snaphook.
• ANSI Z359.1-compliant.

The Workman® Winch is a rugged, versatile and economical hoist for lifting, lowering and positioning of personnel and materials in confined space applications. Designed for a maximum workload of 310 lbs for personnel (10:1 design factor) and 620 lbs for materials (5:1 design factor), the Lynx™ Hoist for personnel provides all steel construction with energy absorber that operates even when usable length of line is fully extracted. Each unit offers galvanized or stainless steel wire rope line with self-locking swivel snaphook. Optional air drive adapter enables powered lifting and lowering with separate air-powered drive assembly.

• Designed for lifting, lowering and positioning of personnel and materials.
• Maximum work load of 310 lbs for personnel, 620 lbs for materials.
• Anti-backlash crank handle with lifting/lowering speed of 25 ft per minute.
• Integral shock absorber.
• Load-limiting clutch prevents overloading of hoist.
• Emergency drive allows manual bypass of load-limiting clutch for extra lifting capacity in an emergency.
• Air drive adapter enables powered lifting/lowering with optional air-powered drive assembly.
• Includes galvanized or stainless steel wire rope line with self-locking swivel snaphook.
• Primary gear backed up by two independent secondary brakes.

The Workman® Rescuer

MSA's Workman Rescuer provides fast, easy and intuitive fall protection with integral bi-directional retrieval capability. Not only does the Workman Rescuer arrest the fall, its retrieval capability allows the fallen worker to ascend or descend to a safe location. This durable, economical addition to the Workman Series of products offers fast installation and setup, ideal for applications where time and ease of use are a priority. The Workman Rescuer is also a stand-alone retractable device, as the carrying handle may be used as an anchorage attachment.

Workman Rescuer Features & Benefits

• User capacity up to 400 lbs. for personnel.
• Galvanized or stainless steel 3/16" wire rope.
• Integral mounting bracket.
• Color-coded switch for retrieval mechanism activation.
• Ergonomic, stainless steel carrying handle can also be used as anchorage connection point.
• Built-in shock absorber.
• Robust aluminum housing with thermoplastic bumpers.
• Self-locking swivel snaphook with load indicator.
• Stow-able, foldable crank handle.
• RFID-enabled.

Workman® Rescuer Options & Specifications

• Net weight: 16.3kg (includes bracket).
• Crank handle material: Carbon steel with zinc plating.
• Housing material: Cast aluminum.
• Lifting and lowering gear ratio: Gear ratio: 5:1.
• Maximum free fall distance: 2 ft. (0.6m).
• Maximum deceleration distance: 54 inch (1.4m).
• Maximum arresting force: 1800 lbs. (8Kn).

Color: SILVER

Country of Origin: China

GTIN: 641817086858

HAZMAT Item: NO

New: Yes

Type: 10163033, TRIPOD, 65 FT WINCH SST, 50 FT SST RESC

Unit of Measure: EA

UPC Code: 641817086858
