GfG 8050-4021, GfG Wall mount filter panel / 50 CFM with 4021 (4 ports), 4021 , Instrument with Complete Filter Panels

GfG Wall mount filter panel / 50 CFM with 4021 (4 ports), 4021, Instruments with Complete Filter Panels, GfG 8050-4021

GfG Filter Panels - For Respirable Air - With & Without 4021 Monitor

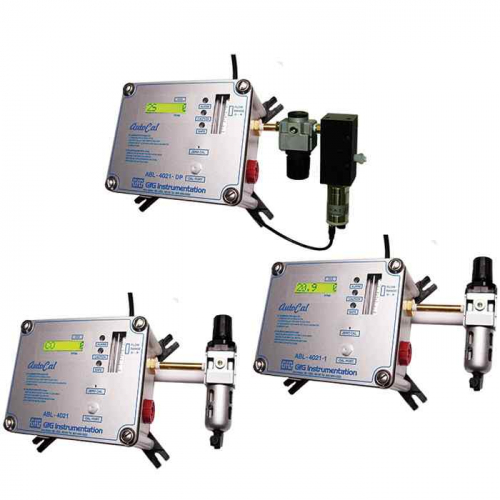

The RAM 4021 AutoCal® series is the unit of choice where specific and accurate measurement of carbon monoxide, oxygen or dew-point levels are required. Our innovative AutoCal® system makes calibration and maintenance simple. Additional features include alarm relay contacts, user adjustable alarm points, and low flow alarm indicator. All models may be purchased with or without airline filter systems.

The 25, 50 and 100 CFM wall mounted filter panels remove dangerous contaminants from supplied air sources and ensure clean, breathable air. The three-stage filter system efficiently removes particulates, oil vapors and hydrocarbons from an air supply. After filtration, the regulator sets the pressure for the respiratory equipment, and the manifold assembly provides multiple outlets for airline hose quick connections.

All GfG Instrumentation RAM Instruments satisfy the requirements of OSHA rule 29 CFR 1910.134 (d) (2) (ii) for carbon monoxide monitoring. They will also monitor Grade E air, generally specified for breathing air in cylinders (SCBA).

Features:

• Continuous carbon monoxide (CO) monitor for compressed air.
• Optional low hydrogen interference CO sensor (add -H to part number).
• Integrated dew point measurement (if specified).
• Meets OSHA monitoring requirements for grade D breathing air.
• AutoCal® automatic calibration.
• Available in or CSA marked models.
• Dryer control relays (DPX model only).
• User-adjustable alarm points.
• Dry contacts for remote horn and lights.
• Internal, case-mounted horn.
• LCD display.
• NEMA 4X housing.
• Optional 3 stage filtering for up to 8 users.

Standard Accessories:

• RAM 4021 Monitor.
• Standard carbon monoxide (CO) or optional low H2 interference (CO-H ) sensor. Other sensors (as specified).
• Manual.

HAZMAT Item: No
